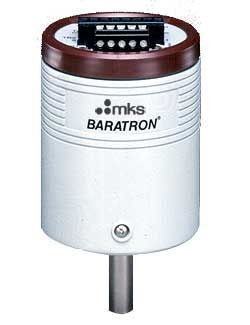

ull Scale Ranges | 1, 2, 10, 20, 100, 500, or 1000 Torr and metric equivalents |
Accuracy | 0.25% of Reading for 1 to 1000 Torr Includes hysteresis, non-linearity, and non-repeatability. |
Temperature Coefficients | |
Zero | 0.005% FS/°C for 10 to 1000 Torr ranges, 0.010% FS/°C for 2 Torr range, 0.015% FS/°C for 1 Torr range |
Span | 0.04% of Reading/°C |
Resolution | 0.001% of Full Scale |
Ambient Operating Temperature | 0 to 50°C |
Overpressure Limit | 45 psia (310 kPa) |
Materials Exposed to Process | Inconel® and Incoloy® nickel alloys |
Volume (Measurement Side) | 6.3 cm³ |
Input Power Required | ±15VDC (±5%) @ 35 mA |
Output Signal | 0 – 10 VDC into > 10 kΩ load |
Electrical Connector | Terminal block |
Compliance | CE compliant to EMC Directive 2004/108/EC (for CE compliance, the mating connector must be properly grounded) Fully compliant to RoHS Directive 2002-95-EC |
Fittings | |
Standard | ½” (12.7 mm) OD tube standard |
Optional | 8 female VCR®, 8 female VCO®, NW16-KF, NW25-KF, 1.33” (33.8mm) OD Confl at®, 2.75” (70 mm) OD Conflat |
